Ball and Beam Model

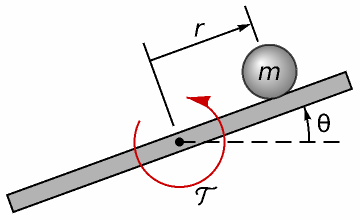

Model of a ball and beam system

Examples

Basic Examples (2)

Retrieve the model:

In[1]:=
ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\)]
Out[1]=

The icon:

In[2]:=
ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\), "Icon"]
Out[2]=

Scope & Additional Elements (4)

Available content elements:

In[3]:=
\!\(\* TagBox[ RowBox[{"ResourceObject", "[", "\"\<Ball and Beam Model\>\"", "]"}], #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\)["ContentElements"]
Out[3]=

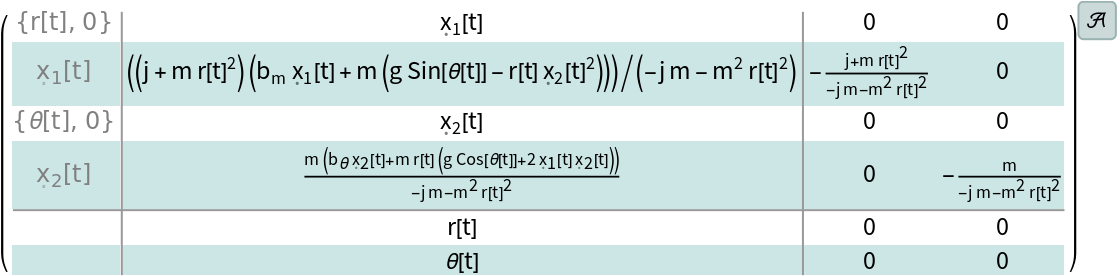

The available model types:

In[4]:=
ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\), "AvailableModelTypes"]
Out[4]=

The operating point:

In[5]:=
ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\), "OperatingPoint"]
Out[5]=

The parameters:

In[6]:=
ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\), "Parameters"]
Out[6]=

Analysis (5)

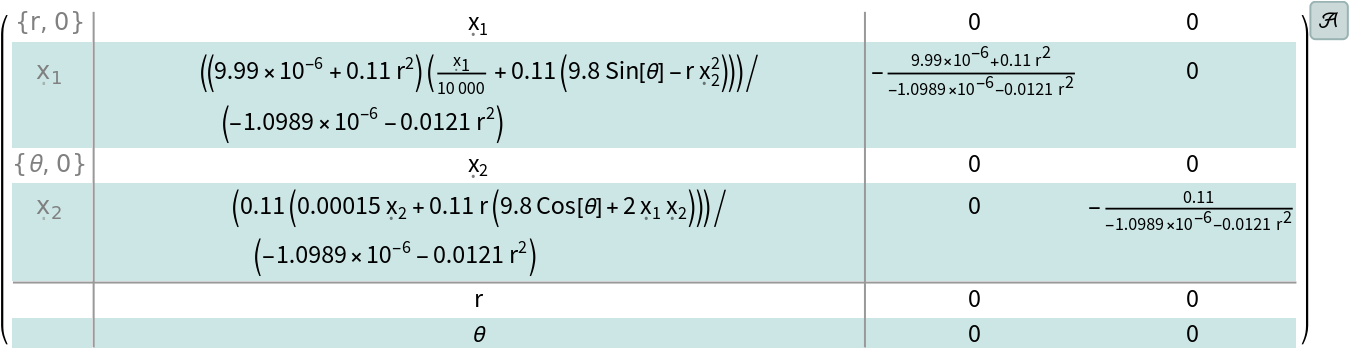

The numerical model:

In[7]:=
assm = AffineStateSpaceModel[ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\)] /. ResourceData[\!\(\* TagBox["\"\<Ball and Beam Model\>\"", #& , BoxID -> "ResourceTag-Ball and Beam Model-Input", AutoDelete->True]\), "Parameters"], Automatic, Automatic, Automatic, None]
Out[7]=

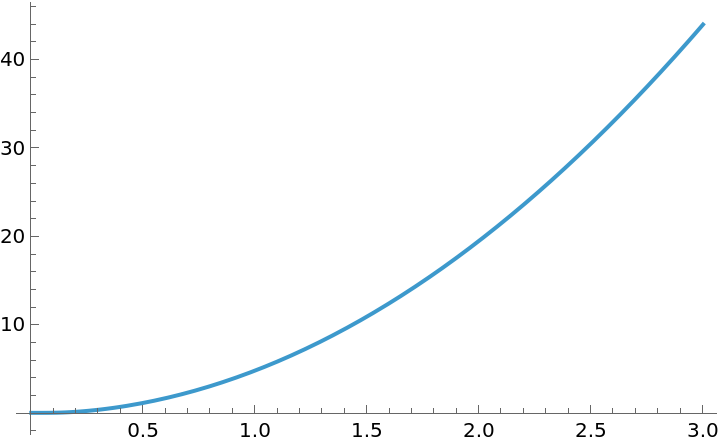

Without feedback control, the system is not balanced:

In[8]:=
OutputResponse[{assm, {0.1}}, {0, 0}, {t, 0, 3}]; Plot[%[[1]], {t, 0, 3}, PlotRange -> All]
Out[9]=

A system specification for the control design:

In[10]:=
sspec = <|"InputModel" -> assm, "FeedbackInputs" -> 2|>;

Compute an LQR controller that balances the system:

In[11]:=
lqr = LQRegulatorGains[sspec, {( { {1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, 10, 0}, {0, 0, 0, 1} } ), {{1}}}, "Data"]
Out[11]=

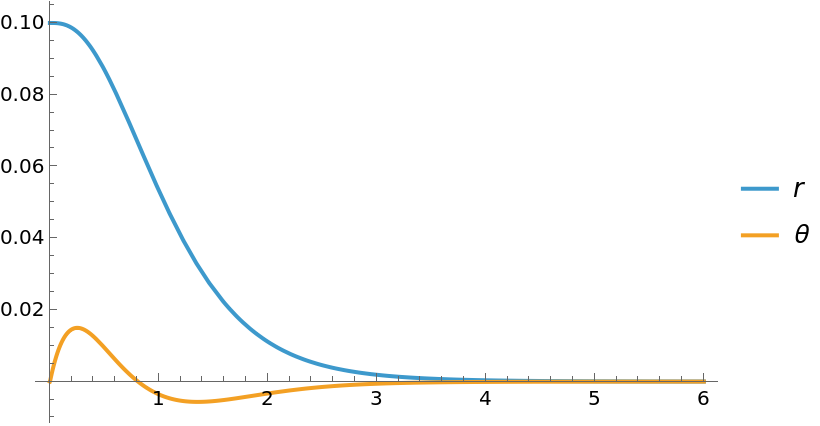

The closed-loop system is balanced:

In[12]:=
OutputResponse[{lqr["ClosedLoopSystem"], {0.1}}, {0, 0}, {t, 0, 6}]; Plot[%, {t, 0, 6}, PlotRange -> All, PlotLegends -> {r, \[Theta]}]
Out[13]=

Suba Thomas, "Ball and Beam Model" from the Wolfram Data Repository (2025)  

Data Resource History

  • Date Created:

Source Metadata

  • Citation:
    • C. G. Bolívar-Vincenty and G. Beauchamp-Báez, "Modelling the Ball-and-Beam System: From Newtonian Mechanics and from Lagrange Methods", in Proc. 12th LACCEI Latin American and Caribbean Conf. Eng. Technol. (LACCEI 2014), Guayaquil, Ecuador, Jul. 22–24, 2014.

Publisher Information

  • Prepared for the Wolfram Data Repository By: Maher Kuzbari, Suba Thomas
  • Publisher of Record: Suba Thomas
