Fed-Batch Reactor Model

Source Notebook

Model of a fed-batch reactor

Examples

Basic Examples (3)

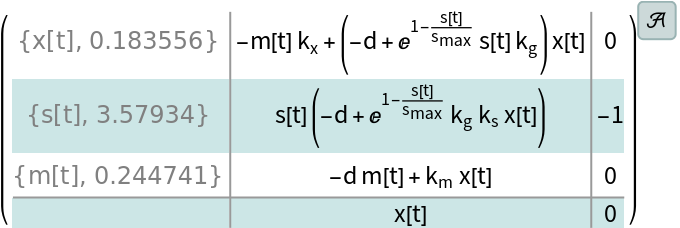

Retrieve the model:

In[1]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\)]
Out[1]=

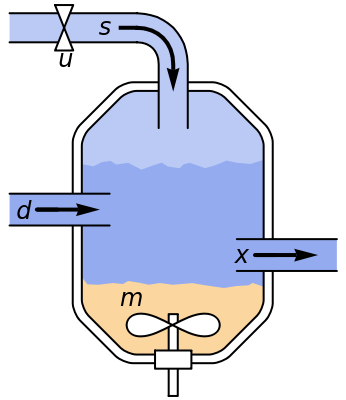

The icon:

In[2]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "Icon"]
Out[2]=

The annotation:

In[3]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "Annotation"]
Out[3]=

Scope & Additional Elements (5)

Available content elements:

In[4]:=
\!\(\* TagBox[ RowBox[{"ResourceObject", "[", "\"\<Fed-Batch Reactor Model\>\"", "]"}], #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\)["ContentElements"]
Out[4]=

The transfer function model:

In[5]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "TransferFunctionModel"]
Out[5]=

The input variables:

In[6]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "InputVariables"]
Out[6]=

Other variables:

In[7]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "OtherVariables"]
Out[7]=

Temporal variable:

In[8]:=
ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "TemporalVariable"]
Out[8]=

Analysis (2)

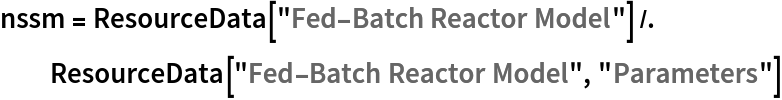

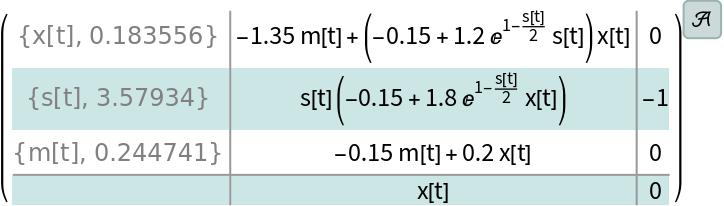

The numerical model of the system:

In[9]:=
nssm = ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\)] /. ResourceData[\!\(\* TagBox["\"\<Fed-Batch Reactor Model\>\"", #& , BoxID -> "ResourceTag-Fed-Batch Reactor Model-Input", AutoDelete->True]\), "Parameters"]
Out[9]=

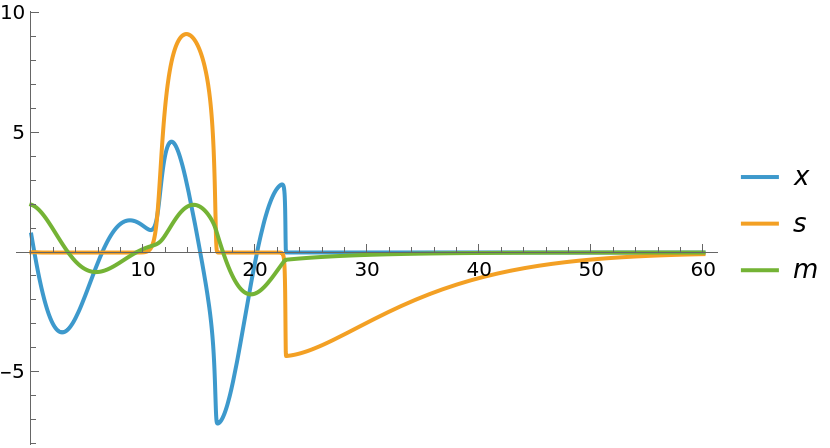

Its response to a perturbation in the states is highly nonlinear:

In[10]:=
StateResponse[{nssm, {0.75, 0.01, 2}}, 0, {t, 0, 60}]; Plot[%, {t, 0, 60}, PlotRange -> All, PlotLegends -> {x, s, m}]
Out[11]=

Suba Thomas, "Fed-Batch Reactor Model" from the Wolfram Data Repository (2025)  

Data Resource History

  • Date Created:

Source Metadata

  • Citation:
    • I. Rocha, A. Veloso, S. Carneiro, R. Costa, and E. Ferreira, "Implementation of a specific rate controller in a fed-batch E. coli fermentation", in Proceedings of the 17th World Congress of the International Federation of Automatic Control (IFAC), Seoul, Korea, Jul. 2008.
