Satellite Orbital Model

Model of a satellite's orbital dynamics

Examples

Basic Examples (2)

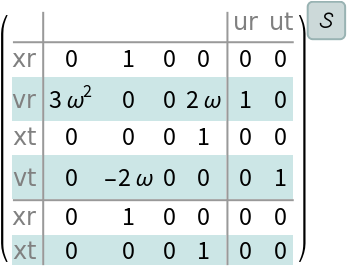

Retrieve the model:

In[1]:=

$ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$]$

Out[1]=

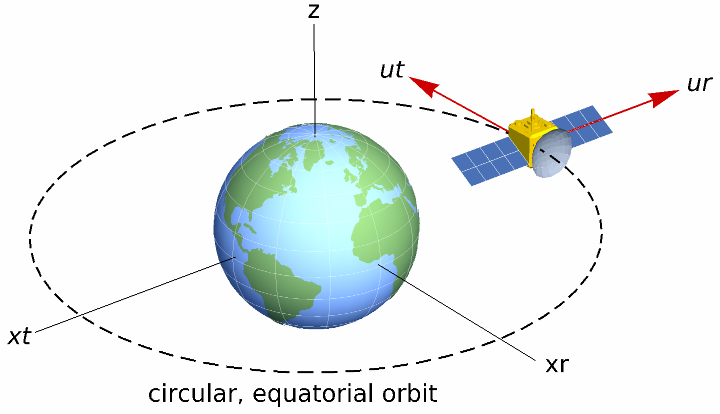

The icon:

In[2]:=

$ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$, "Icon"]$

Out[2]=

Scope & Additional Elements (3)

Available content elements:

In[3]:=

$\!$\* TagBox[ RowBox[{"ResourceObject", "[", "\"\<Satellite Orbital Model\>\"", "]"}], #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$["ContentElements"]$

Out[3]=

The available model types:

In[4]:=

$ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$, "AvailableModelTypes"]$

Out[4]=

The parameters:

In[5]:=

$ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$, "Parameters"]$

Out[5]=

Analysis (2)

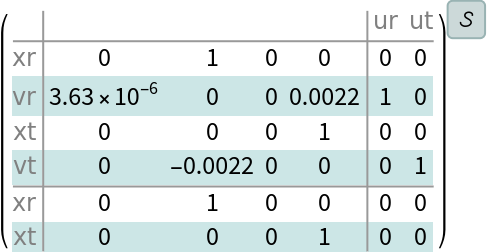

The numerical model of the system:

In[6]:=

$ssm = ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$] /. ResourceData[\!$\* TagBox["\"\<Satellite Orbital Model\>\"", #& , BoxID -> "ResourceTag-Satellite Orbital Model-Input", AutoDelete->True]$, "Parameters"]$

Out[6]=

The orbit is not controllable with radial thrusters, but is controllable with the tangential:

In[7]:=

Out[7]=

Bibliographic Citation

Suba Thomas, "Satellite Orbital Model" from the Wolfram Data Repository (2025)

Data Resource History

Date Created: 28 March 2025

Source Metadata

Citation: R. C. Dorf and R. H. Bishop, "Modern Control Systems, 13th ed.", Pearson, 2017.

Publisher Information

Prepared for the Wolfram Data Repository By: Maher Kuzbari, Suba Thomas
Publisher of Record: Suba Thomas
